Monitor and configure your Blue Sky Energy off-grid solar system directly from your iPhone or iPad via Bluetooth. View real-time operating data, review historical trends, and adjust controller settings wherever you are. Scan the QR code with your iPhone or iPad to download the BT Connect app.
🤖 Android version currently under development.

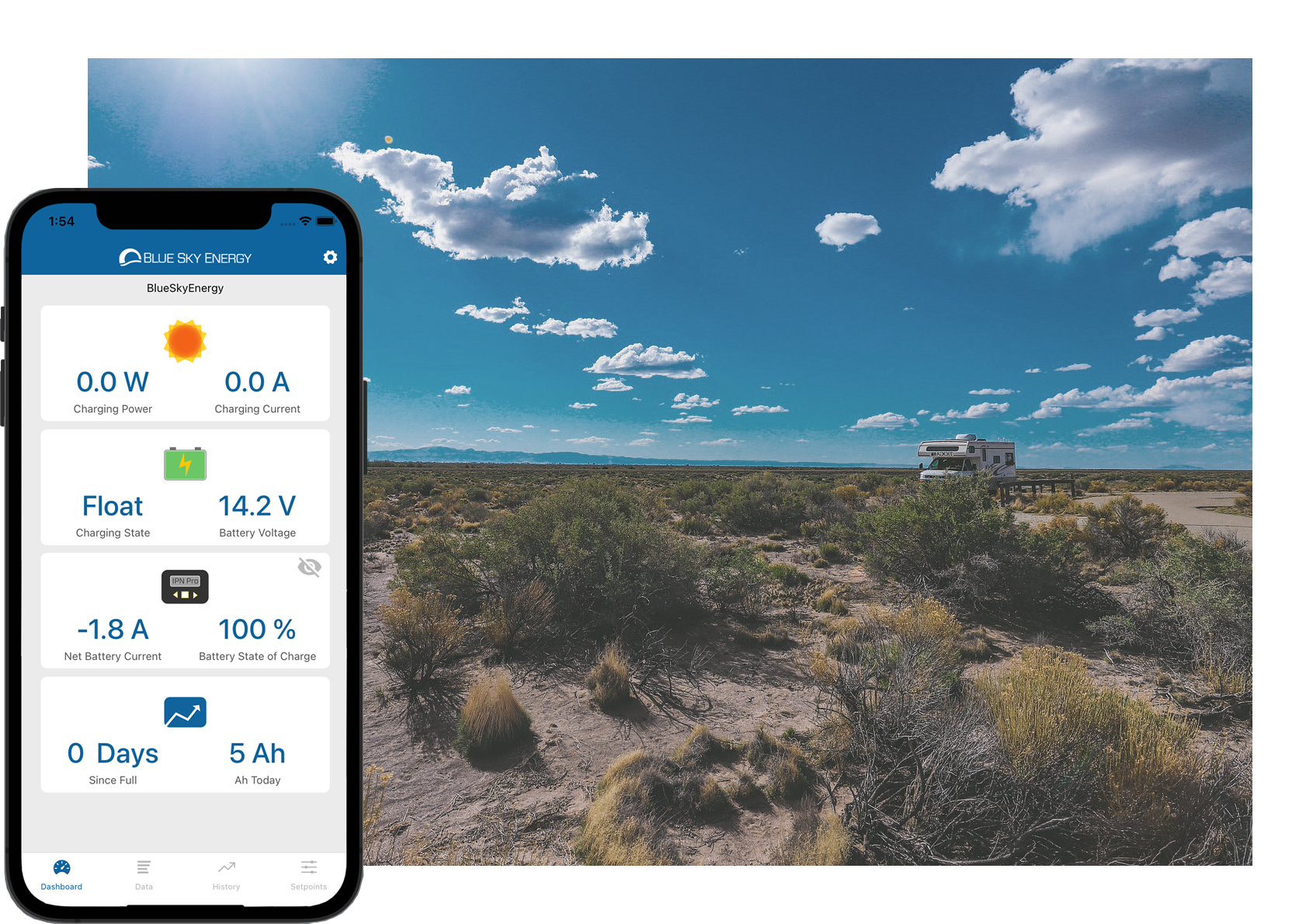

The BT Connect app displays over twenty different measurements so you can monitor your system in real-time. Check out the Dashboard for a quick look at values like battery voltage and charging power. Head over to the Data page for a more in-depth look at your system and see how each controller is performing.
Away from your system for a few days and want to see how it performed? The BT Connect takes a snapshot of your system every five minutes and displays your battery voltage, charging current, input voltage and charging state in a table. Look at the graph to see how the charging current and battery voltage changed over the day, week or month. This data can be saved locally to your phone, so you can review your history even without a Bluetooth connection.
See all of your system parameters at once and change them instantly with one touch. Every system is different, so the BT Connect allows you to customize your controllers to work best with your panels and battery.
- SD Card logging: When used with an SD card, your historical data will be saved to a CSV file at your preferred logging interval. You can then use this file to export your data to a computer and easily share with others.
- Wall Mounting: The BT Connect is designed to mount on a wide variety of surfaces in any orientation.
- Compatibility: The BT Connect is powered by the charge controller through its RJ-11 communication port and it is compatible with all IPN capable Blue Sky Energy charge controllers (SB3000i, SB3024iL/DiL, SB1524iX, SB2512iX-HV) and IPN displays remote for complete monitoring solution.
- Range: The BT Connect uses BLE technology and has a range of up to 100 feet (30 m).
