ProTouch

3.5” Touchscreen Remote Display

Starting at $170

  • 3.5″ Touchscreen display
  • Flush-Mounting
  • Solar and battery monitoring
  • 5 preset charge profiles for Lead Acid and LiFePO4
  • Monitoring data for a single controller or total system data
  • IPN compatible with the SB1524iX, SB2512iX-HV, SB3024(D)iL, SB3000i, BT Connect, and UCM
  • CE, RoHS, compliant
Buy Now

The ProTouch is a 3.5” flush-mounting touchscreen display compatible with any Blue Sky Energy charge controller with IPN network capability. It provides a user-friendly graphic interface for monitoring your solar system as well as five preset charge profiles (Lead Acid and LiFePO4) for your charge controller.

ProTouch 3.5″ touchscreen remote display
ProTouch-S 3.5″ touchscreen remote display with 500A/50mV current shunt(*)

(*) Enhanced battery monitoring (SOC%, Ah Charged, Net Battery Current).

Easy and Fast Installation via IPN cable

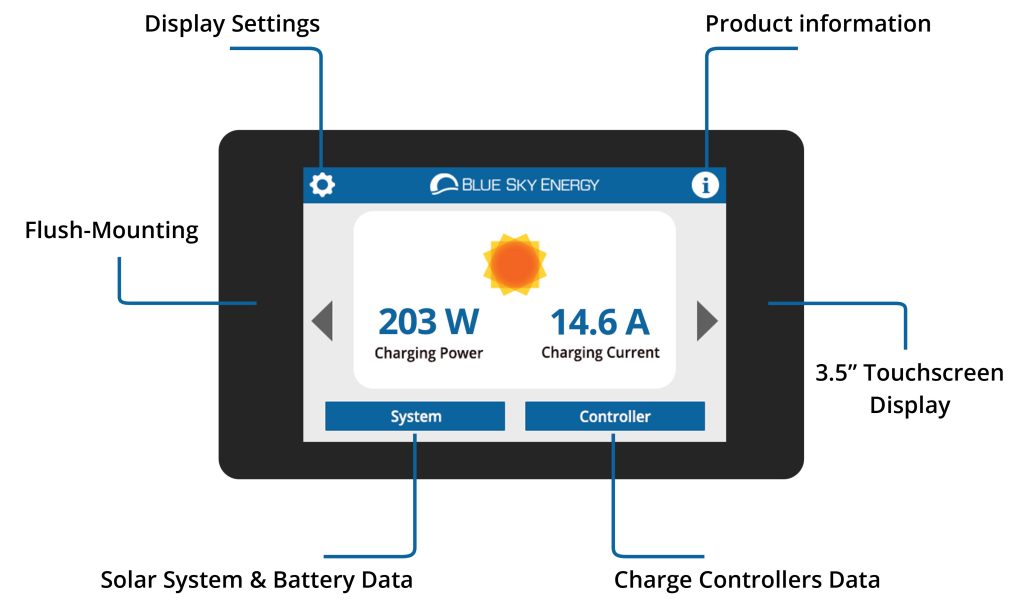

Intuitive and Easy Graphic User Interface

SpecificationsProTouch(-S)
Display:Touchscreen TFT 3.5”
Resolution:480 x 320 pixel
Power Consumption:Max. 1.5 W (100% backlite ON), Default 1.0 W (50% backlite ON)
Stand-by Consumption:0.45W
Battery Ammeter:Accuracy +/- 0.5% FS
Current Shunt:2-Position Terminal Connector (ProTouch-S)
Operating Temperature Range:-20°C, +70°C
Environmental Protection:IP20
Communication and Cabling:IPN Communication via 25' (7.6m) RJ-11 (4-pin telephone cable provided)
Weight:5.30Oz (150.2g)
Dimensions:2.81” x 5.51” x 1.59” (71.5mm x 140mm x 40.5mm)
Certifications:CE, FCC, RoHS
Warranty:5 years

Manual ProTouch(-S) (pdf)
Datasheet ProTouch(-S) (pdf)
Blue Sky Energy Product Selection Guide (pdf)
Warranty (pdf)
SKU Description Price Quantity
ProTouch

Flush Mounting 3.5″ touchscreen display, solar and battery monitoring with 5 preset profiles, RJ-11 cable 25′ (7.6 m) included

 $170
ProTouch-S

ProTouch remote display with 500A/50mV current shunt

 $210
