Solar Panels and Kits

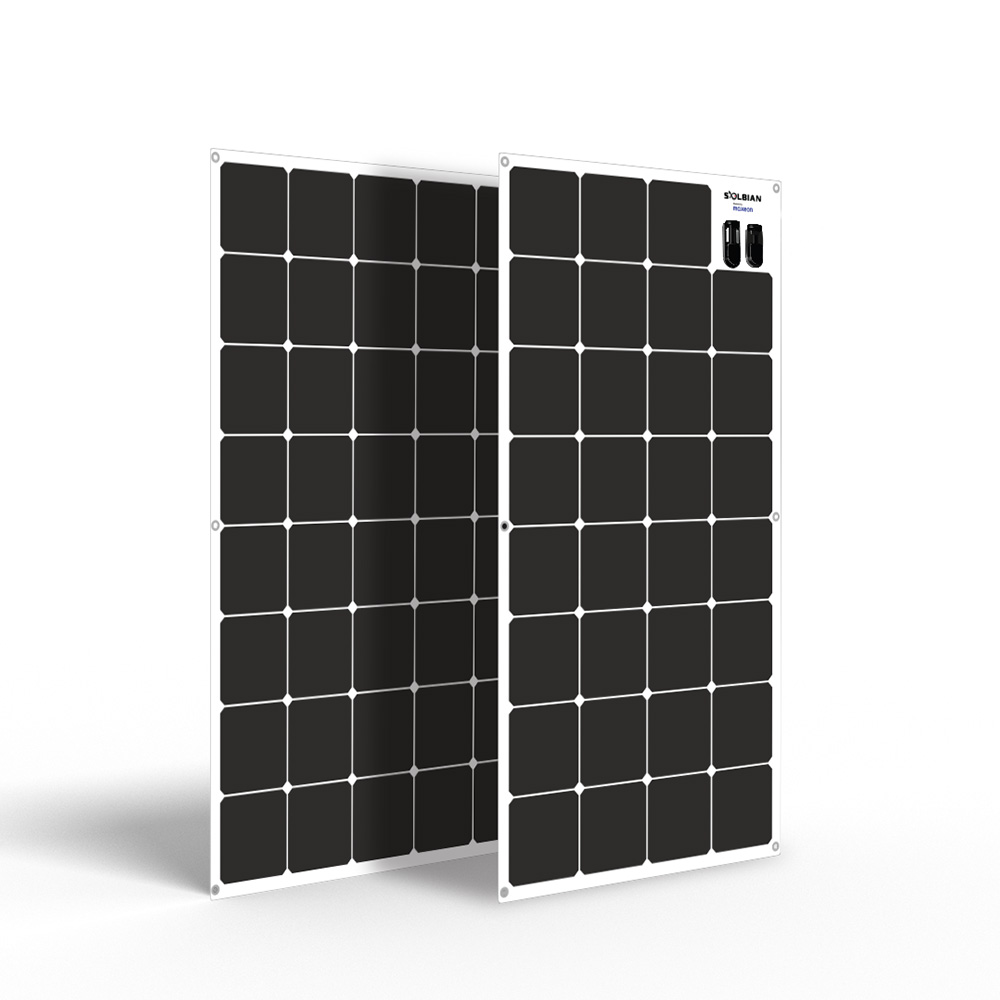

The SunBender is a new series of semi-flex solar panels from Solbian Energie Alternative made with Maxeon Prime PV cells.
SunBender SB 31: 108W semi-flex solar PV panel with hidden connectors and matte finishing
SunBender SB 47: 164W semi-flex solar PV panel with hidden connectors and matte finishing
SunBender SB-KM-Pb: Genasun GV-10-Pb-12V for 12V Lead Acid batteries, SB31 (108W) solar PV panel by Solbian, and cables
SunBender SB-KM-Li: Genasun GV-10-Li-14.2V for 4S LiFePO4 batteries, SB31 (108W) solar PV panel by Solbian, and cables
SunBender SB-KL-Pb-24V: Genasun GVB-8-Pb-24V for 24V Lead Acid batteries, SB47 (164W) solar PV panel by Solbianl, and cables
SunBender SB-KL-Li–28.4V: Genasun GVB-8-Li-28.4V for 8S LiFePO4 batteries, SB47 (164W) solar PV panel by Solbian, and cables
Quick and easy setup. All the components you need for DIY installation!
Description of the components of the SunBender Kit:

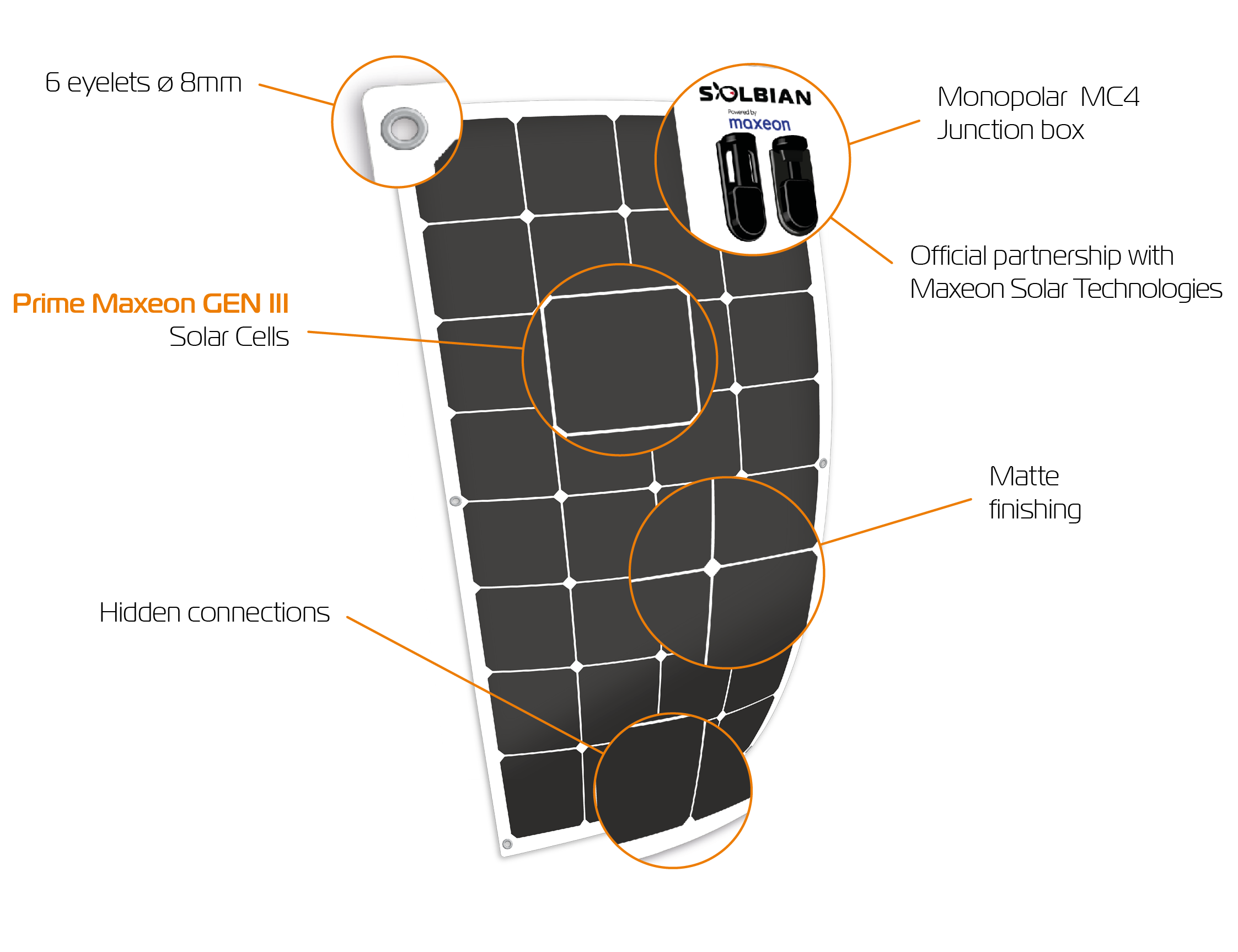

Solbian solar panel SB31:
- SB31 Solbian semi-flex solar panel SunBender series
- 108W Prime Maxeon Monocrystalline PV cells efficiency Min. 24%
- Front sheet Matte and hidden connections
- 2 x Monopole Junction Box for MC4 connectors
- Mounting with 6 eyelets 8 mm
- Dimensions: 41.5″ x 21.5″ x 0.08″ (1.054 mm x 546 mm x 2 mm)
- Weight: 3.08 lb (1.4 kg)
- Made in Italy
Solbian solar panel SB47:
- SB47 Solbian semi-flex solar panel SunBender series
- 164W Prime Maxeon Monocrystalline PV cells efficiency Min. 24%
- Front sheet Matte and hidden connections
- 2 x Monopole Junction Box for MC4 connectors
- Mounting with 6 eyelets 8 mm
- Dimensions: 41.5″ x 31.5″ x 0.08″ (1.054 mm x 800 mm x 2 mm)
- Weight: 4.4 lb (2 kg)
- Made in Italy
Genasun MPPT GV-10:
- MPPT BUCK technology
- Battery type: 12V-nominal Lead-Acid battery or LiFePO4 battery
- LED indicator for battery state of charge
- 98-99% Peak Efficiency
- High-speed MPPT Tracking (15 times per sec)
- Advanced electronic protections
- Tiny self-consumption
- Environmental Protection: IP40
- Weight: 10.3oz
- Dimensions: 5.5″ x 3.2″ x 2.2″
- Certifications: UL/CSA (Safety and HazLoc C1D2), CE, FCC, and RoHS
- Made in the USA
Genasun MPPT GVB-8:
- MPPT BOOST Voltage technology
- Battery type: 24V-nominal Lead-Acid battery or LiFePO4 battery
- LED indicator for battery state of charge
- 986-9% Peak Efficiency
- High-speed MPPT Tracking (15 times per sec)
- Advanced electronic protections
- Tiny self-consumption
- Environmental Protection: IP40
- Weight: 6.05oz
- Dimensions: 5.4″ x 2.4″ x 1.3”
- Certifications: UL/CSA (Safety and HazLoc C1D2), CE, FCC, and RoHS
- Made in the USA
Panel and Battery Wires Kits:
- 6.5 ft. – 14 AWG cable with MC4 connectors and wire ferrules
- 2.6 ft. – 14 AWG cable with wire ferrules and SuperSeal connector
- 1 ft. – 14 AWG cable with SuperSeal, inline fuse holder, and 2 x M8 Ring Terminal
